Intelligent, automatic measurement of your micro-parts

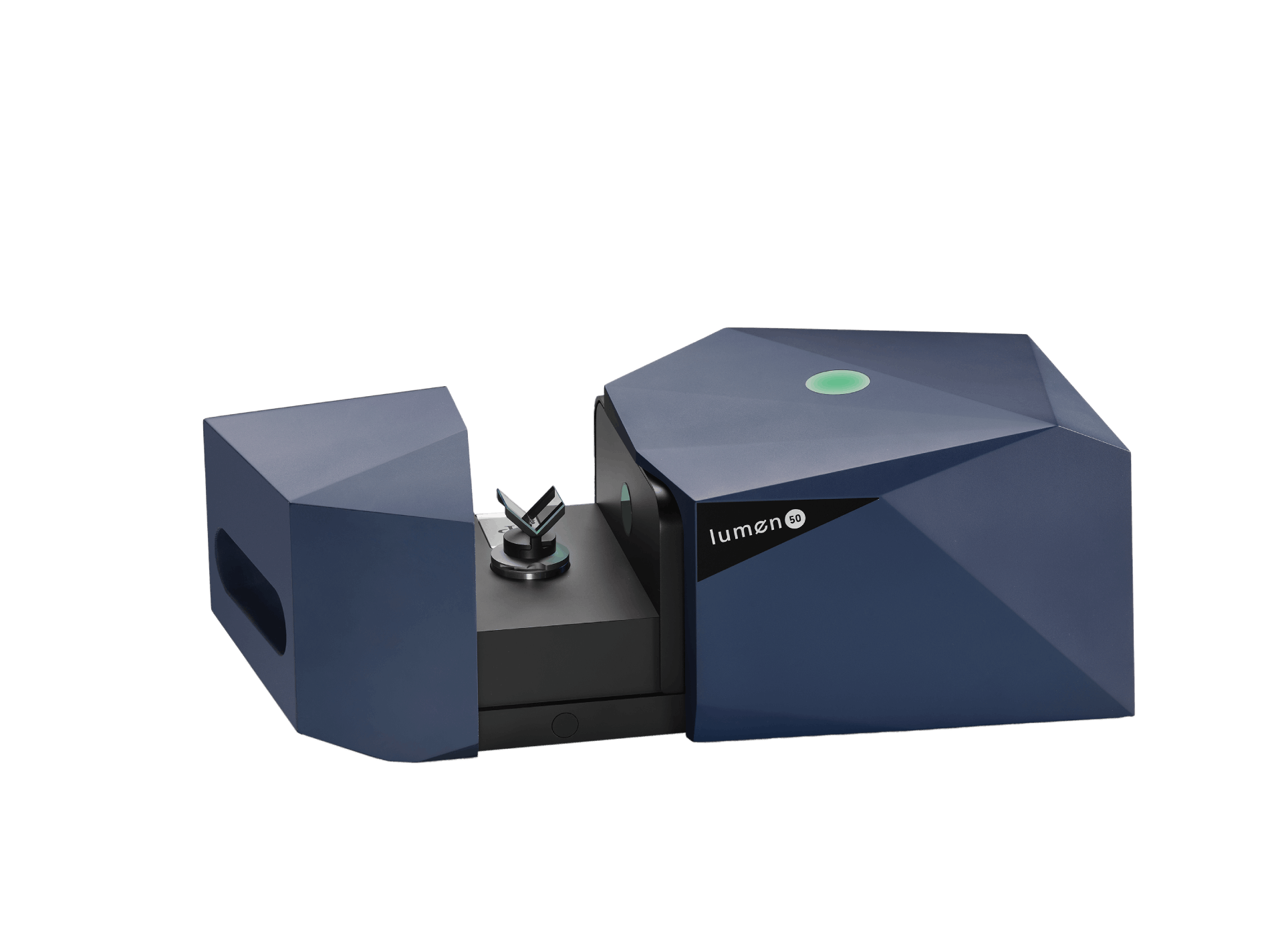

lumen is an optical micro-parts measuring device designed to work in your machine shops. It automatically detects the part number and measures it accurately for easy, fast for production centered on name quotes via its interfacing with tool correctors.

Compact and lightweight, it’s easy to handle. lumen closes automatically at the end of each use, protecting the measuring area. It’s entirely manufactured and developed by our team, who offer customized services, including configuration to suit your parts. In conjunction with the drop cleaning module, it offers the unique advantage of optical measurements right next to CNC machining equipment.

Optical measurement in demanding environments

With its robust construction, lumen automatically detects the program required for part inspection. lumen minimizes measurement variations from one operator to the next, thanks to its ease of use and reliability. It enables quick and precise measurements to be taken with minimum training.

Designed for use close to your machines
Natural positioning of parts in V-shaped installation
Intelligent analysis of installation cleanliness prior to measurement
Quick and easy to clean

Intelligent, automatic measurement of your parts

Our NIHS-compliant Prisme software makes programming quick and easy. Thread measurement, for example, can be created in just a few clicks.

Its uncluttered, ergonomic interface enables rapid visual analysis of variations and results. Automatic program detection is a feature much appreciated by operators, ensuring smooth, efficient operation.

An optional license is available for remote, part-free programming. Simply use a DXF file to generate the programs in advance. These are compatible for use on the 5 different types of lumen.

Connected to your network, the lumen micro-parts measuring device feeds the database for traceability of measurements taken. Updates are available free of charge in the dedicated section of our website.

Items to be ordered separately

posage pour appareil de mesure lumen en v

90° V-shaped vertical installation

V-shaped positioning for décolleté axis

posage en v pour axe décolleté de très petites dimensions lumen

70° V-shaped vertical installation

V-shaped positioning for very small décolleté axes

Horizontal installation

Tray installation

Two-slat installation

Layout with adjustable support zones

Installation on request

Fixtures to suit your rooms

24-inch PC

24-inch all-in-one touch PC

Specifications

Table with device specifications (field of view, accuracy, repeatability).

Model	Visual Field [mm]	Accuracy (ø) [µm]	Repeatability (+/-2σ) [µm]
50	16.8x12.6	+/- 1.6	1.6
75	11.2x8.4	+/- 1.2	0.9
100	8.4x6.3	+/- 0.8	0.5
150	5.6x4.2	+/- 0.6	0.4
200	4.2x3.1	+/- 0.6	0.3

Technical specifications

The lumen micro-part measuring device offers five different models, each equipped with optics adapted to measure parts of various sizes, with optimum resolution.
